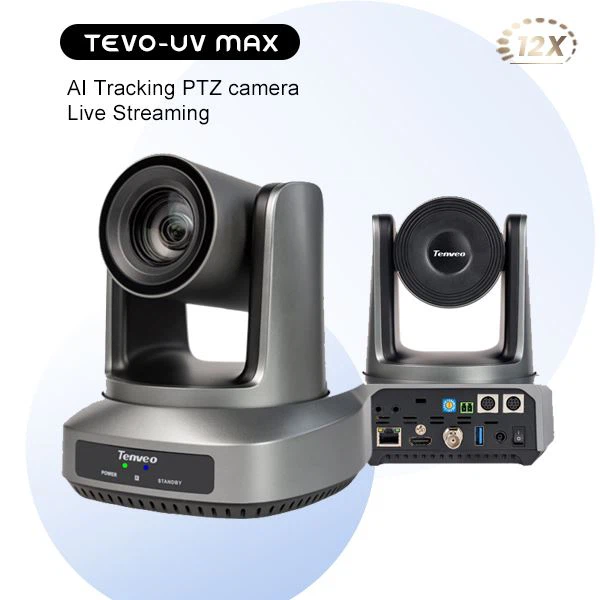

UV Max Auto Tracking NDI SDI USB IP 12X 20X 30X PTZ CONFERENCE Camera

Mudell Nru.

UV Max 612A

UV Max 620A

UV Max 630A

Senser

1/2.8''

Pixel effettivi

2.07MP

Zoom ottiku

12x zoom ottiku

20x zoom ottiku

30x zoom ottiku

Lenti

f =3.5 mm ~ 42.3mm

f =4.42 mm ~ 88.5mm

f =4.42 mm ~ 132.6mm

Apertura

F1.8 ~ F2.8

F1.8 ~ F2.8

F1.8 ~ F2.8

Angolu orizzontali

72.29 grad ~ 6.74 grad

64.98 grad ~ 3.47 grad

63.7 grad ~ 3.28 grad

Angolu vertikali

43.43 grad ~ 3.83 grad

38.41 grad ~ 1.98 grad

37.1 grad ~ 1.68 grad

Angolu djagonali

80.71 grad ~ 7.65 grad

72.88 grad ~ 3.95 grad

72.5 grad ~ 3.63 grad

Sinjali tal-vidjow

1080P60, 1080P59.94, 1080P50, 1080P30, 1080P29.97, 1080P25, 1080I60, 1080P59.94, 1080P50, 720P60, 720P59.94, 720P50

Zoom diġitali

16X

Output tal-vidjow

USB 3.0, HDMI, RJ45, SDI

Standard tas-sinjal

NTSC / PAL

Interfaċċa ta 'kontroll

RS232, RS485, USB, NET

Shutter

1/30s ~ 1/10000s

Bilanċ abjad

Auto, ġewwa, barra, spinta waħda, manwal, var

Kumpens tal-backlight

Appoġġ

Tnaqqis tal-ħoss diġitali

2D & 3D Tnaqqis tal-Ħoss Diġitali

Rata ta 'baud

2400/4800/9600/19200/38400/57600/115200

Protokoll ta 'kontroll

Visca, pelco - d, pelco - p

Protokoll USB

UVC 1.1

Illuminazzjoni minima

0.5 lux @ (f1.8, agc fuq)

SNR

Akbar minn jew daqs 55db

Rotazzjoni orizzontali

350 grad (± 175 grad) 0.1 grad / s-100 grad / s

Rotazzjoni vertikali

180 grad (± 90 grad) 0.1 grad / s-80 grad / s

H & v flip

Appoġġ

Iffriżar tal-immaġini

Appoġġ

Poe

Appoġġ

Numru ta 'preset

255

Eżattezza ssettjata minn qabel

0.1 grad

Format tal-kodifikazzjoni tal-vidjow

H.264 / H.265 / MJPG

Vidjow Stream

Nixxiegħa prinċipali, sub stream

Riżoluzzjoni tal-fluss prinċipali

1920x1080.1280x720.1024x576, eċċ.

Riżoluzzjoni ta 'Sub Stream

1280x720101024x576,720x576, eċċ.

Rata tal-bit tal-vidjow

32kbps ~ 20480kbps

Tip ta 'rata tal-bit

Rata varjabbli, rata fissa

Rata tal-qafas

1fps ~ 60fps

Kompressjoni awdjo

AAC

Rata tal-bit awdjo

96kbps, 128kbps, 256kbps

Protokoll tan-netwerk

NDI|HX2, SRT, TCP / IP, HTTP, RTSP, RTMP (S), ONVIF, DHCP, GB / T28181, Multicast; Appoġġ sħiħ ND

Output HD

1XHDMI 1x3g - sdi: tip bnc, 800mvp - p, 75ω, flimkien ma 'smpte 424m standard

LAN

1XRJ45: 10m / 100m interface Ethernet

Interface awdjo

1-ch: interface awdjo 3.5mm, linja fi

USB

1XUSB3.0: Jack femminili tat-Tip B

Interface tal-komunikazzjoni

1xrs232 fi: 8pin min din, distanza: 30m, protokoll: visca / pelco - d / pelco - p 1xrs232 Out: 8pin min din, max distanza: 30m,
Protokoll: Netwerk Visca Uża biss 1xrs485: 2pin port Phoenix, distanza massima: 1200m, protokoll: visca / pelco -} d / pelco - p)

Power Jack

Tip Jeita (DC fi 12V)

Provvista ta 'enerġija

DC 12V / 2A

Konsum tal-enerġija

18W
